Precision in Every Pixel: How Wotid’s 3D Modeling Brings Complex Designs to Life

1. The Challenge: Bridging the Gap Between 2D and 3D

When a client sends us a vector file (like the "STAR RUN" design from our Chile partner), they aren't just sending a drawing—they are sending a vision. The challenge for most manufacturers is capturing the depth, shadows, and tactile feel that a flat file can't convey.

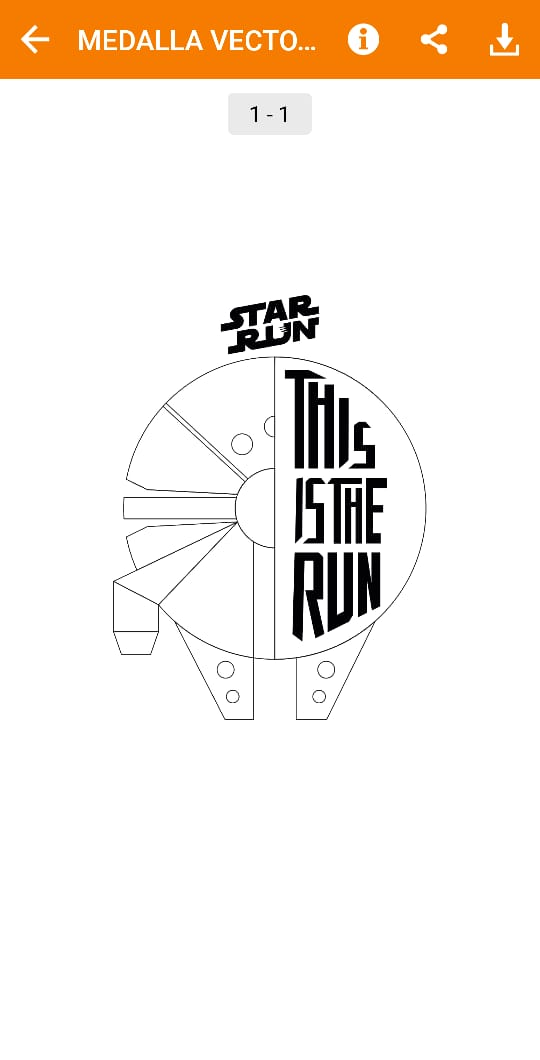

2. Step 1: The Technical Translation (2D Blueprinting)

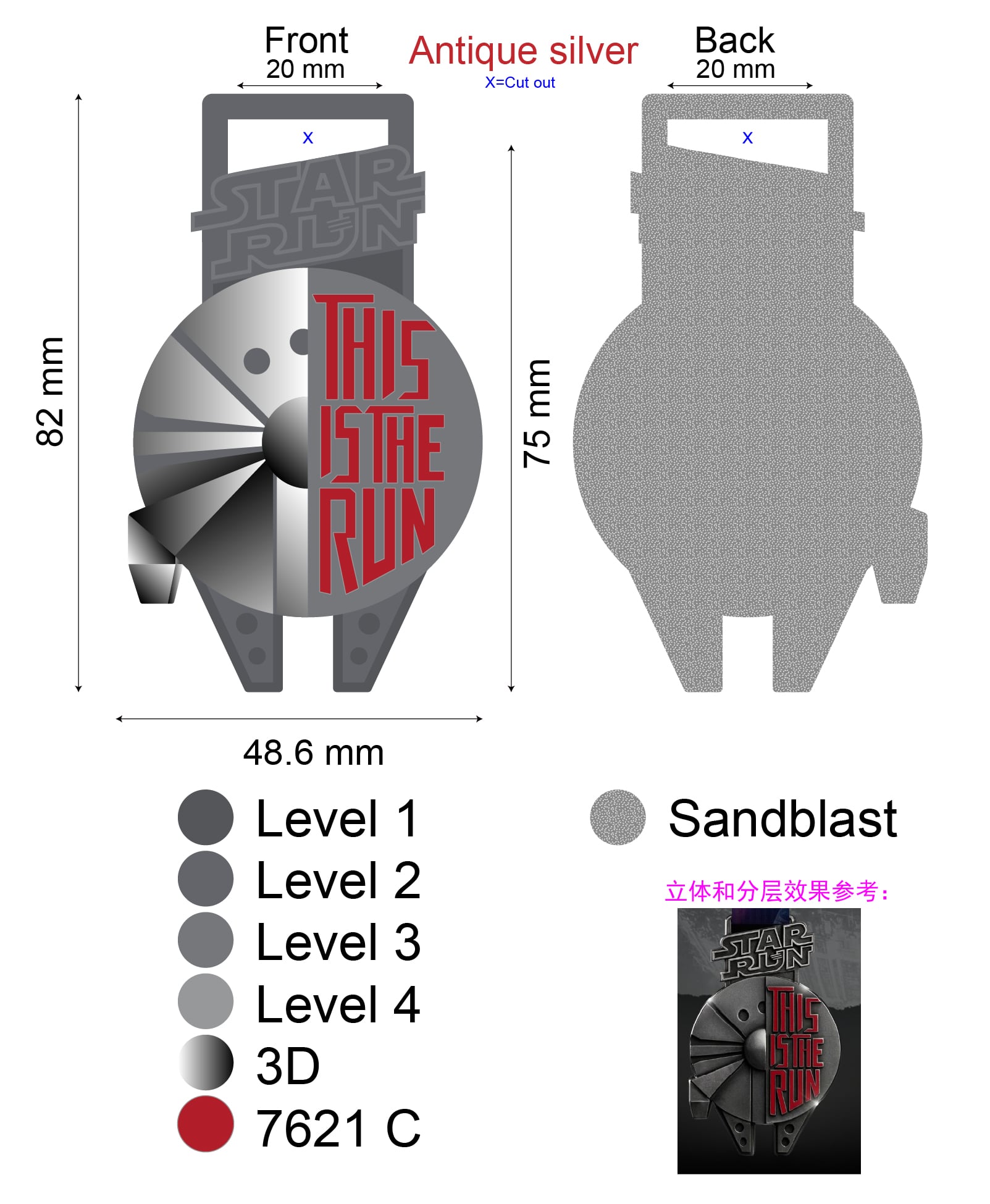

Before we touch any metal, our engineering team creates a technical blueprint. We analyze the line thickness, the minimum distance between characters, and the "Level" logic (Level 1 to Level 4). This ensures that the final physical product won't have thin parts that break or details that are too small to plate.

3. Step 2: 3D Sculpting (The "Gray Model" Phase)

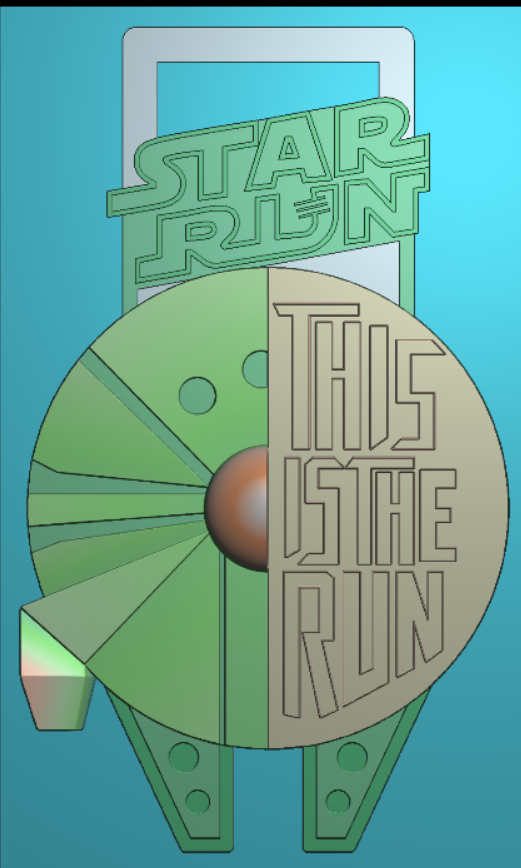

This is where the magic happens. Using high-precision sculpting software, we transform the 2D logo into a 3D Digital Model.

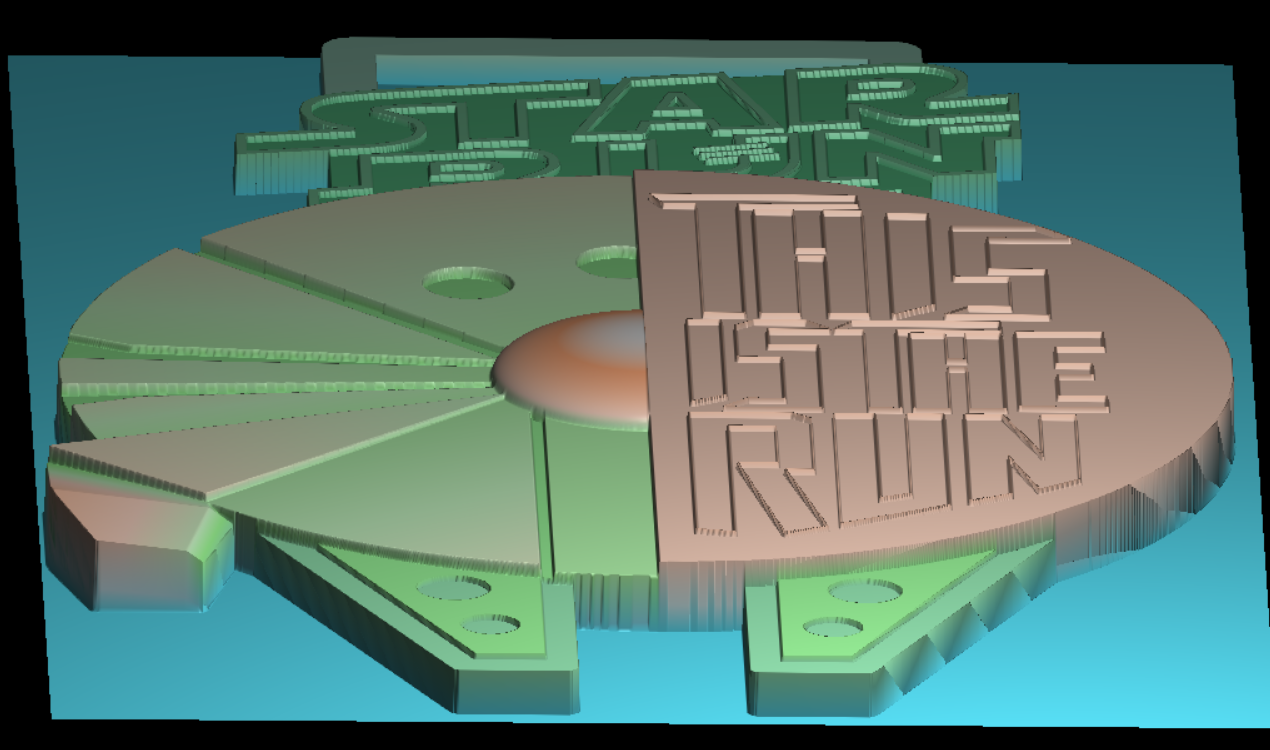

• Look at the "Millennium Falcon" detail: Notice how the cockpit and the engine vents have different heights. This creates a realistic "mechanical" texture that reflects light differently from every angle.
• Client Approval: We send this 3D model to the client for verification. This prevents the "I didn't expect it to look like this" frustration common with low-end suppliers.

The In-House Advantage: Where Your Vision Meets Engineering While many suppliers outsource their design work, Zhongshan Wotid Hardware Co., Ltd. maintains a dedicated in-house design and engineering department. This is the "brain" of our factory.

Our designers don't just create pretty pictures; they are industrial engineers who understand the fluidity of molten zinc alloy and the limitations of CNC steel molds. By having our design team just a few steps away from the production floor, we can:

• Respond Faster: 3D revisions are handled in real-time.
• Design for Manufacturing (DFM): We catch potential production issues at the digital stage, saving you time and money.
• Ensure Consistency: The same team that builds your 3D model oversees the first-piece inspection.

4. Step 3: CNC Precision Engraving (0.05mm Tolerance)

Once the 3D model is approved, it is fed into our CNC machines. We carve the design into high-carbon steel molds with a precision of 0.05mm. Every slope and curve you see on the final medal is an exact replica of that digital model.

5. Final Result: A Physical Masterpiece

The final result? A medal that athletes want to keep forever. The "STAR RUN" medal features deep-recessed enamel, high-contrast 3D relief, and a custom sublimated ribbon.
